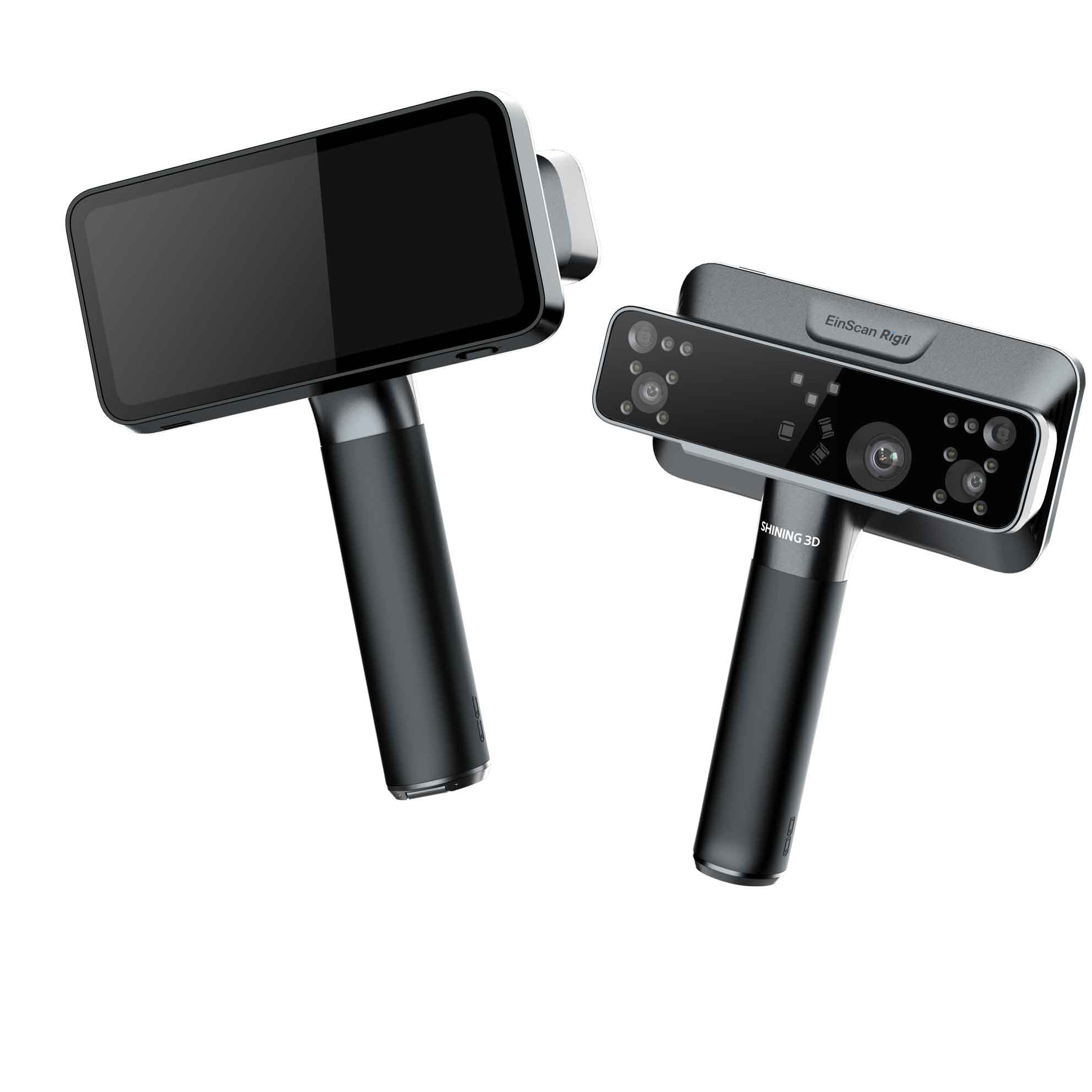

EinScan Rigil
The Tri-Mode Laser 3D scanner
Triple Work Modes
Standalone Mode
No PC connection required, all scanning and processing tasks are completed directly on the hardware, delivering exceptional portability and ease of use
Wireless PC Mode
Leveraging built-in Wi-Fi 6, this mode enables seamless wireless scanning and allows connection to a powerful computer, optimizing performance for complex tasks and large data volume.
Wired PC Mode
Maintaining availability and maximum scanning speed and data volume in complex network environments.
0.04+0.06mm/m Volumetric Accuracy
With 20 years of experience in developing metrology 3D scanning technology, SHINING 3D maintains strict accuracty calibration standards and is dedicated to practicing and advocating truthful accuracy in 3D scanning to deliver reliable and consistent results
0.005 mm High Resolution
Resolution upto 0.05 mm
5MP Full Colour Texture Scanning
Einscan Rigil is equipped with a 5MP high-definition camera that can restore high-quality texture details, allowing designers, engineers and artists to maintain high-fidelity modeling and rendering during the digitisation process, providing more precise information for subsequent analysis and creation.
Whats in the Box?
EinScan Rigil
Battery
Battery Compartment & Charging Cable
Carrying Case
Calibration Board
Universal Holder
Power Adaptor
Type C Cable
Marker Removal Tool
3mm and 6 mm Reflective Markers
Cleaning Cloth
Packing List
Technical Specifications
| Work Mode: |
Wireless Standalone For extra computing resource: PC- Wireless / PC-Wired |
|---|---|
| Scan Mode: |
Laser HD IR Rapid |
| Light Source: |
19 + 19 crossed blue laser lines 7 blue laser parallel lines IR VCSEL |
| Resolution |
Laser HD: 0.05 ~ 10 mm IR Rapid: 0.2 ~ 10 mm |
| Scan Speed: |
19 crossed laser lines: 4,400,000 points/s 7 blue laser parallel lines: 940,000 points/s IR Rapid: 1,600,000 points/s |
| Working Distance: |
Laser HD: 170 ~ 550 mm IR Rapid: 160 ~ 1500 mm |
| Alignment Mode: |
Laser HD: Global Markers / Markers / Features / Hybrid IR Rapid: Global Markers / Markers / Features / Texture / Hybrid |
| Volumetric Accuracy: |
Laser HD: Up to 0.04 + 0.06 mm/ m IR Rapid: Up to 0.1 + 0.3 mm/m |
| Camera Resolution |
3D: 2.3MP*2 1.3MP*2 Texture: 5MP |
| Output Formats: | STL, OBJ, PLY, 3MF, ASC |
| Laser Class: |
Laser HD: Class II IR Rapid: / |
| Hardware: |
CPU: 8 core, 2.4GHz 32GB eMMC+ 1TB SSD ROM 32GB DDR5 RAM 6.4”2K AMOLED Touch Screen |
| Operation Conditions: | Temperature -10℃ ~ 40℃ |
| Certifications: | CE, FCC, ROHS, WEEE, FDA, SRRC, IP50 |
| Recommended Configurations PC: |
Win10/11, 64 bit Graphics card: NVIDIA GTX1060 Video memory: ≥6GB Processor: I7- 11800H Memory: ≥32GB |
| Interface & Power Source: |
USB Type-C Battery: 6000mA*2 Support 60W-PD3.0 Charger |
| Dimensions: | (H*D*W) 233 × 180 × 72.8 mm |
| Net Weight: | 870 g (batteries included) |
